Highly-Oriented Pyrolytic Graphite (HOPG)

Made of highly-oriented forms of high-purity pyrolytic graphite, Momentive Technologies graphite monochromators are shown to diffract X-rays and neutrons with greater efficiency than any other competitive material. Offering the lowest mosaic spread available, Momentive Technologies HOPG materials are excellent for beam conditioning in neutron and x-ray crystal-based optics as monochromators, analyzers or filters.

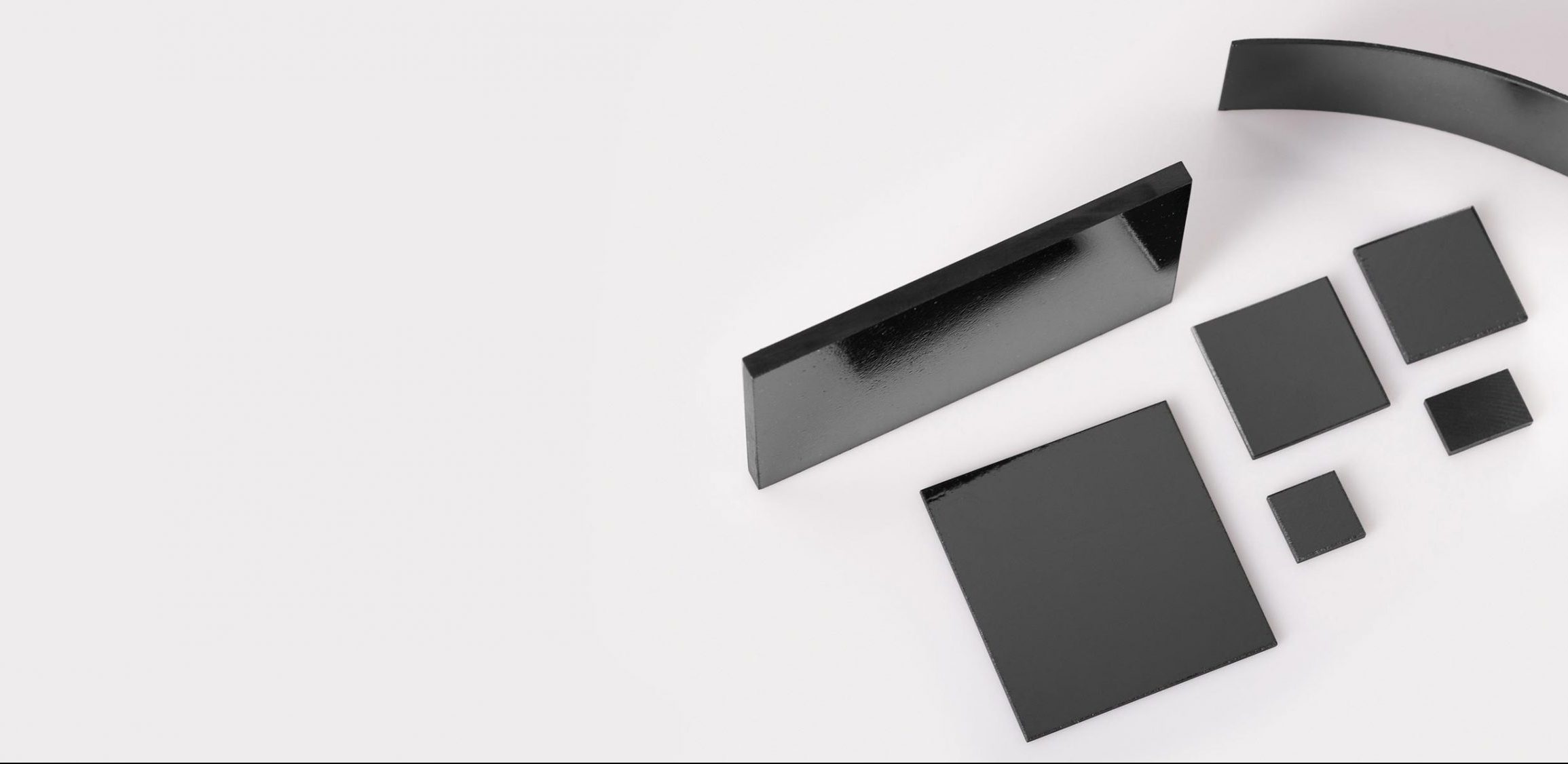

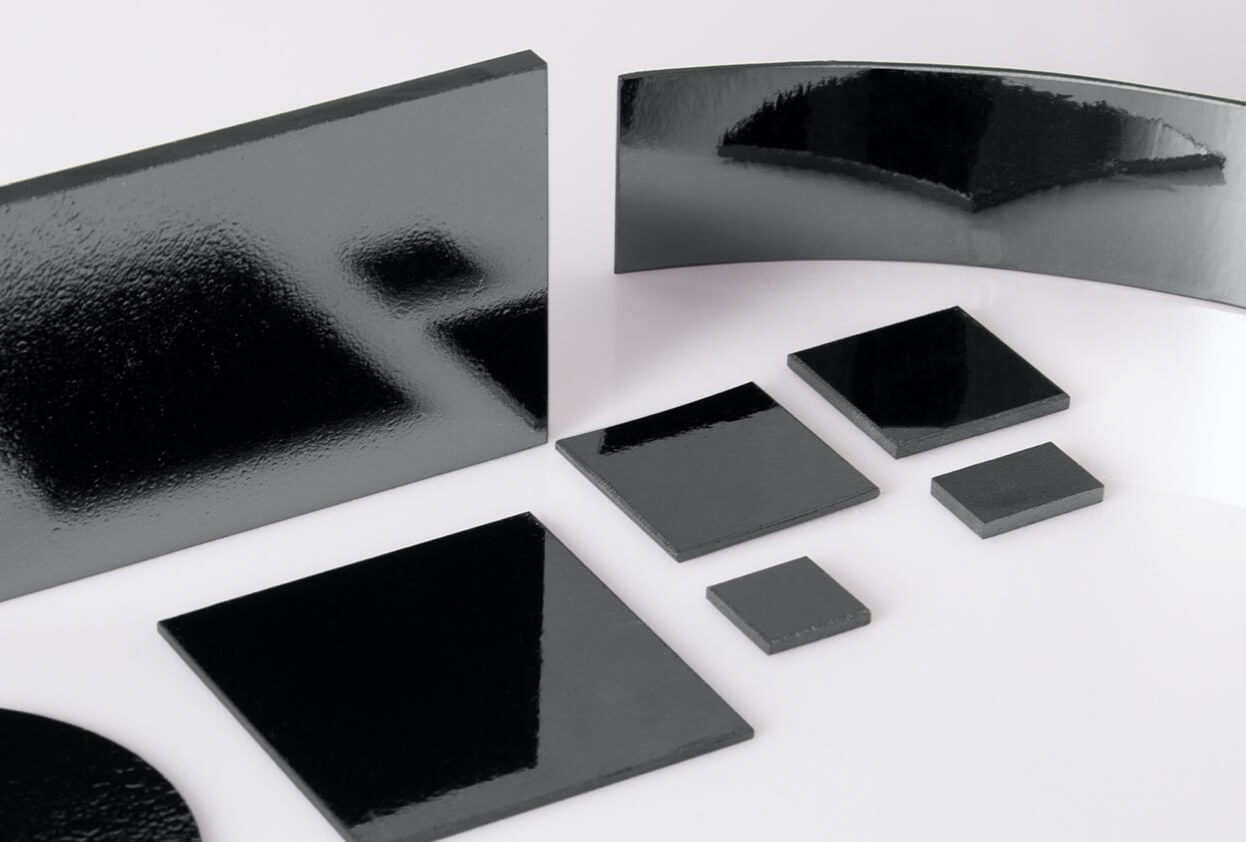

Crystals can be customized for specific mosaic spread ranges, sizes and geometries (flat, single-bent and double-bent shapes) to meet any application requirements, and our Momentive Technologies engineering experts can custom design solutions for specific or unique applications.

Key Features

Ultra-high purity completely prevents unwanted absorption of X-ray and neutron beams

Lowest mosaic spread allows the narrowest wavelength range selections for X-ray and neutron beams

Single-bent focusing monochromators using graphite (in testing) have shown yields up to 3X more than lithium fluoride at equivalent resolution

Potential Applications

X-ray diffraction

Neutron scattering and diffraction

Scanning tunneling microscopy for calibration and substrates

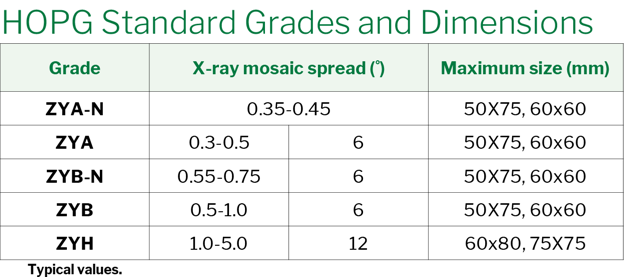

The information provided in these charts is for informational purposes only. It is not a product or material recommendation and it is shared with you on the express condition that you will use your own expertise and professional judgment in applying any information to a specific use case or need. This is general information only, the validity of which may be affected by individual factors that are unknown to Momentive Technologies. It is the responsibility of those using this information to ensure appropriate interpretation and application is undertaken with regards to any specific situation.
