Ceramics Products

Ceramic Coatings

Stability and Purity at its Best

Momentive Technologies is a recognized global leader in engineered coating solutions. With our superior level of sophistication, our team of expert engineers will work with you to design customized solutions for your specific requirements.

Extreme thermal stability and chemical resistance

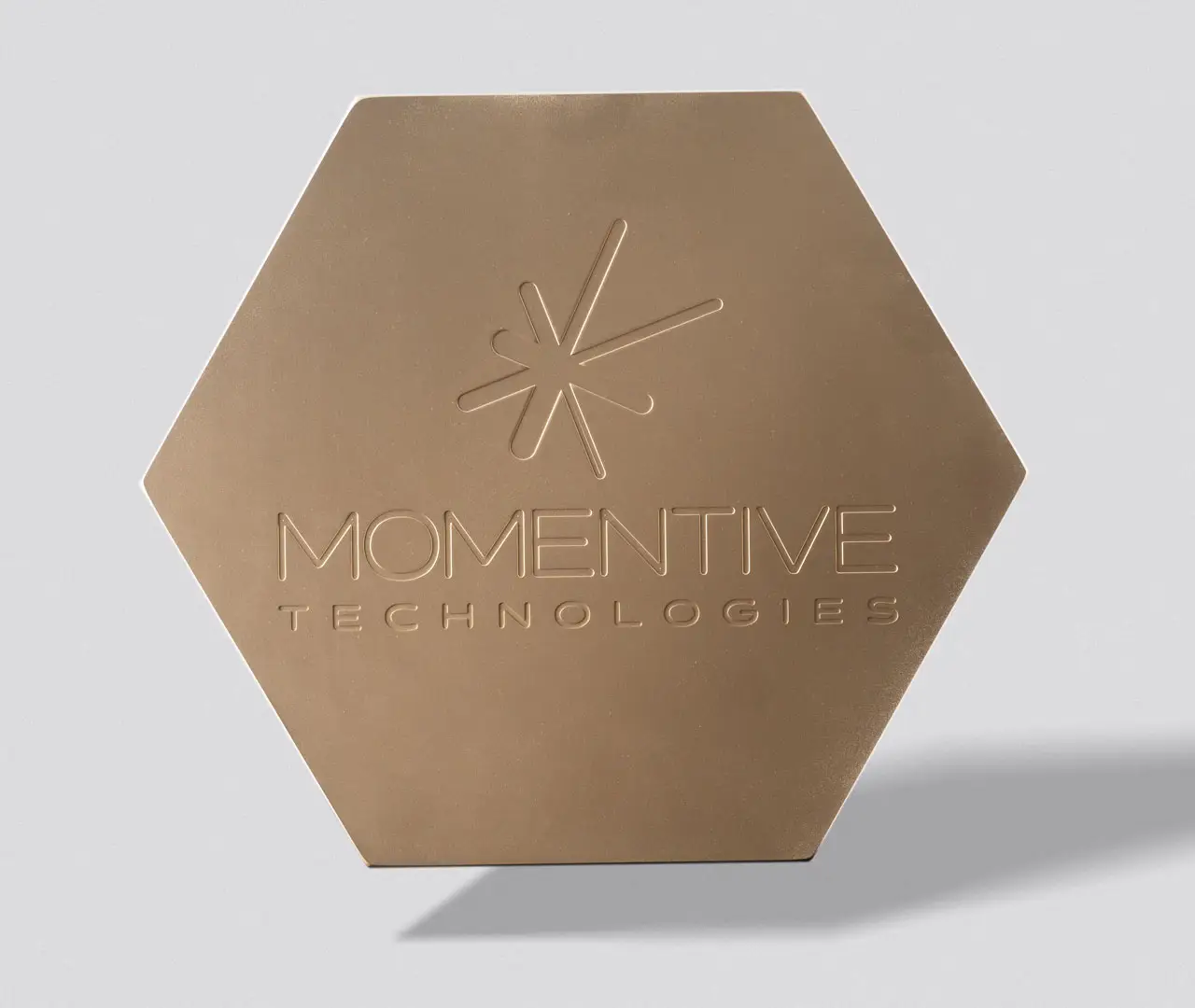

Momentive Technologies offers a proprietary Tantalum Carbide (TaC) coating on crucibles, guide rings, wafer carriers and susceptors. With its high purity, high temperature stability and high chemical resistance, TaC coating improves the product quality of SiC/GaN crystal and epi layer and extends the lifetime of key reactor components.
Tantalum Carbide (TaC)
KEY FEATURES
  • Temperature stability > 2200 °C
  • Ultra high purity
  • Resistance to thermal shock
POTENTIAL APPLICATIONS
  • Compound semiconductor crystals
  • Thermal insulators
  • LED and lighting
INDUSTRIES
  • Lighting
  • Power
  • Industrial

High-performance, high-temperature and ultra-pure

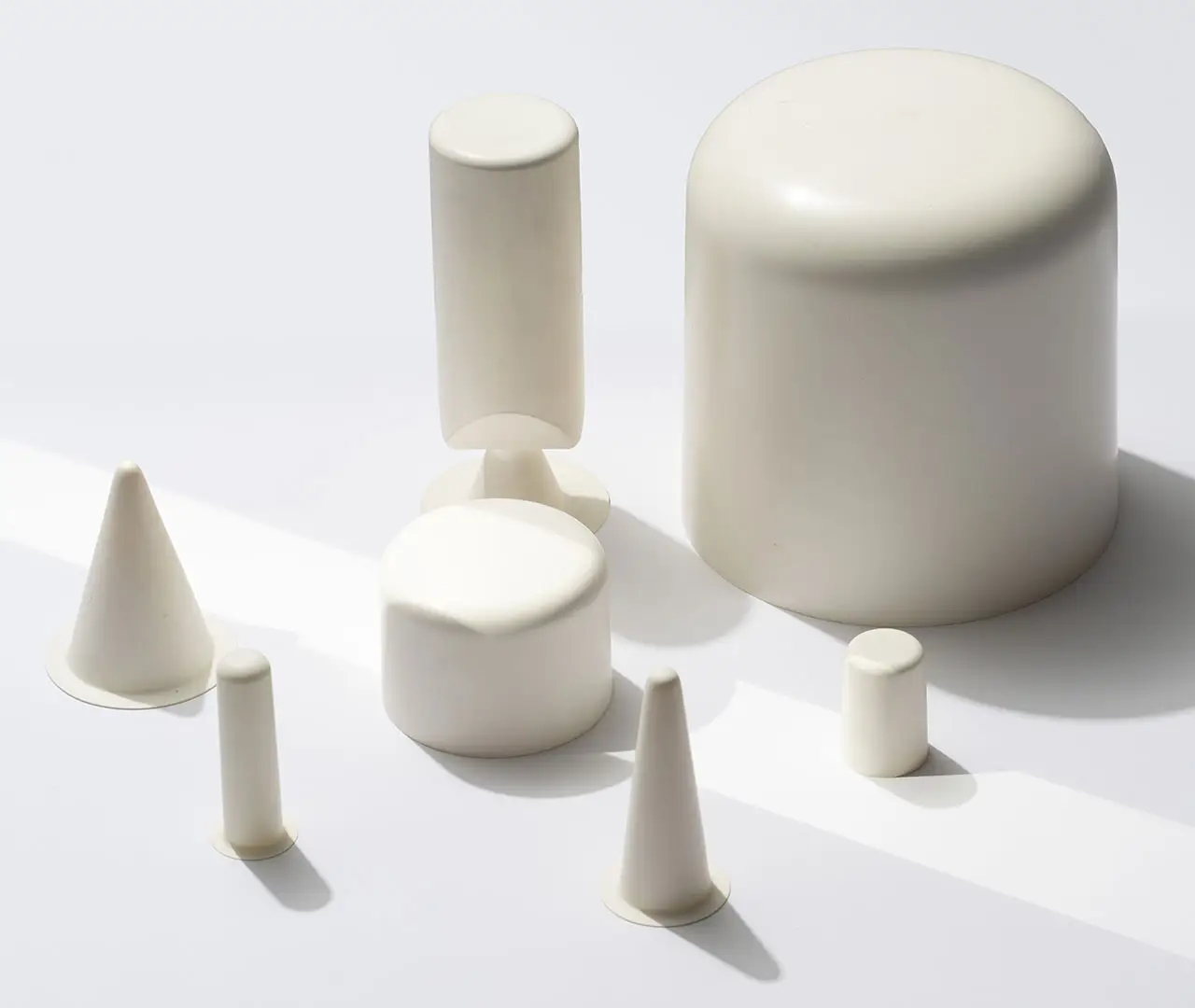

Pyrolytic Boron Nitride (pBN), with a combination of high electrical resistance and thermal conductivity, is an excellent candidate to consider for applications where superior strength, low coefficient of thermal expansion and thermal shock resistance are required. Nonhazardous, nonporous and exceptionally pure, pBN can be applied as a coating on graphite or deposited and then easily machined into 2D or 3D shapes for use as crucibles, boats, plates, wafers, tubes and bottles. Known for its directional thermal conductivity and ability to provide optimal heat spreading, pBN demonstrates improved temperature stability up to 1700°C, is resistant to thermal shock and when coated on graphite can protect against corrosive atmospheres including most molten metals (Al, Ag, Cu, Ga, Ge, Sn, etc.), acids and hot ammonia environments.
Pyrolytic Boron Nitride (PBN)
KEY FEATURES
  • High purity
  • Low density
  • Chemically inert to most gasses
POTENTIAL APPLICATIONS
  • Crucibles
  • Tubes
  • Coatings on graphite
INDUSTRIES
  • Electronics
  • Pharmaceutical
  • Semiconductor

Ultra-pure, high-performance

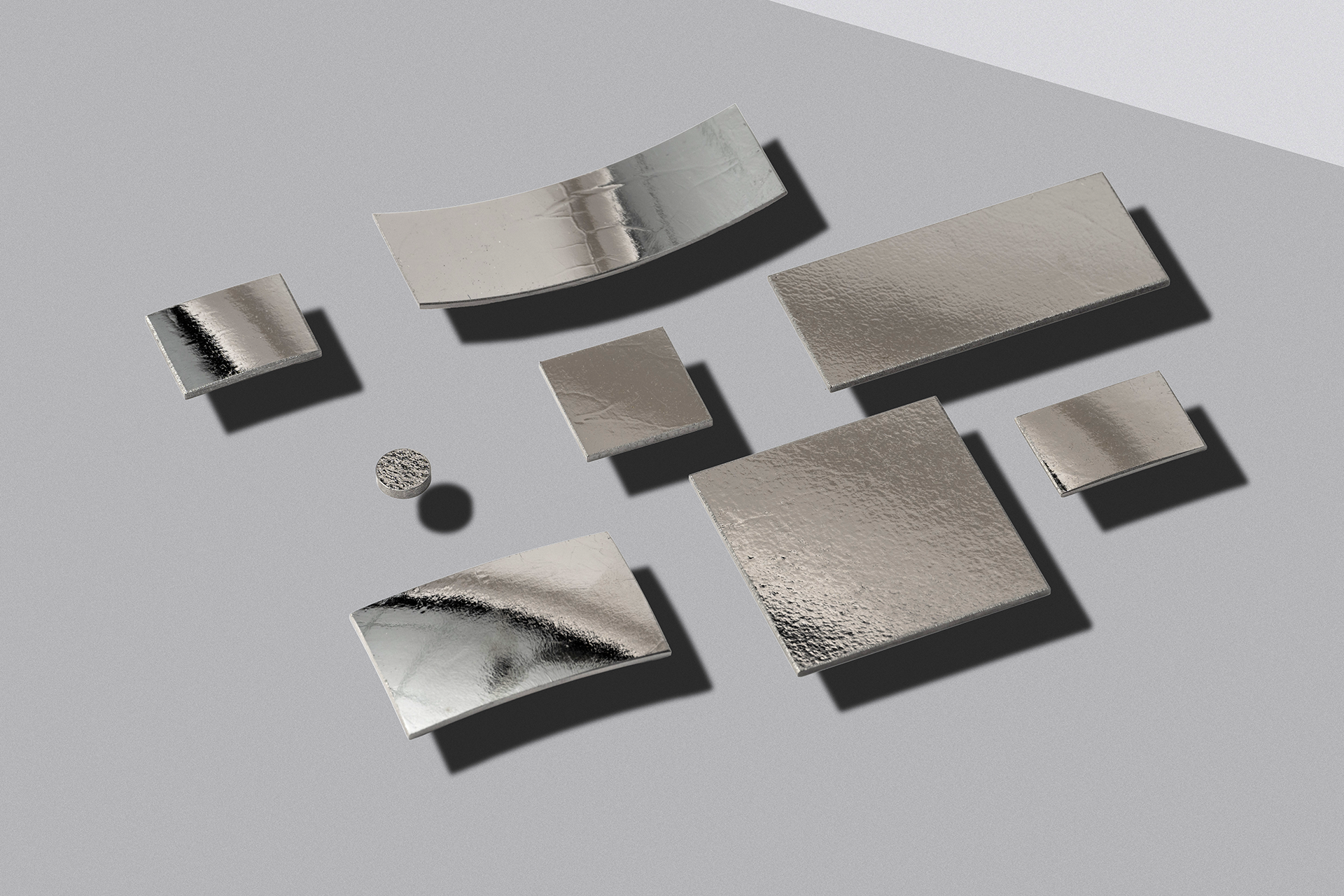

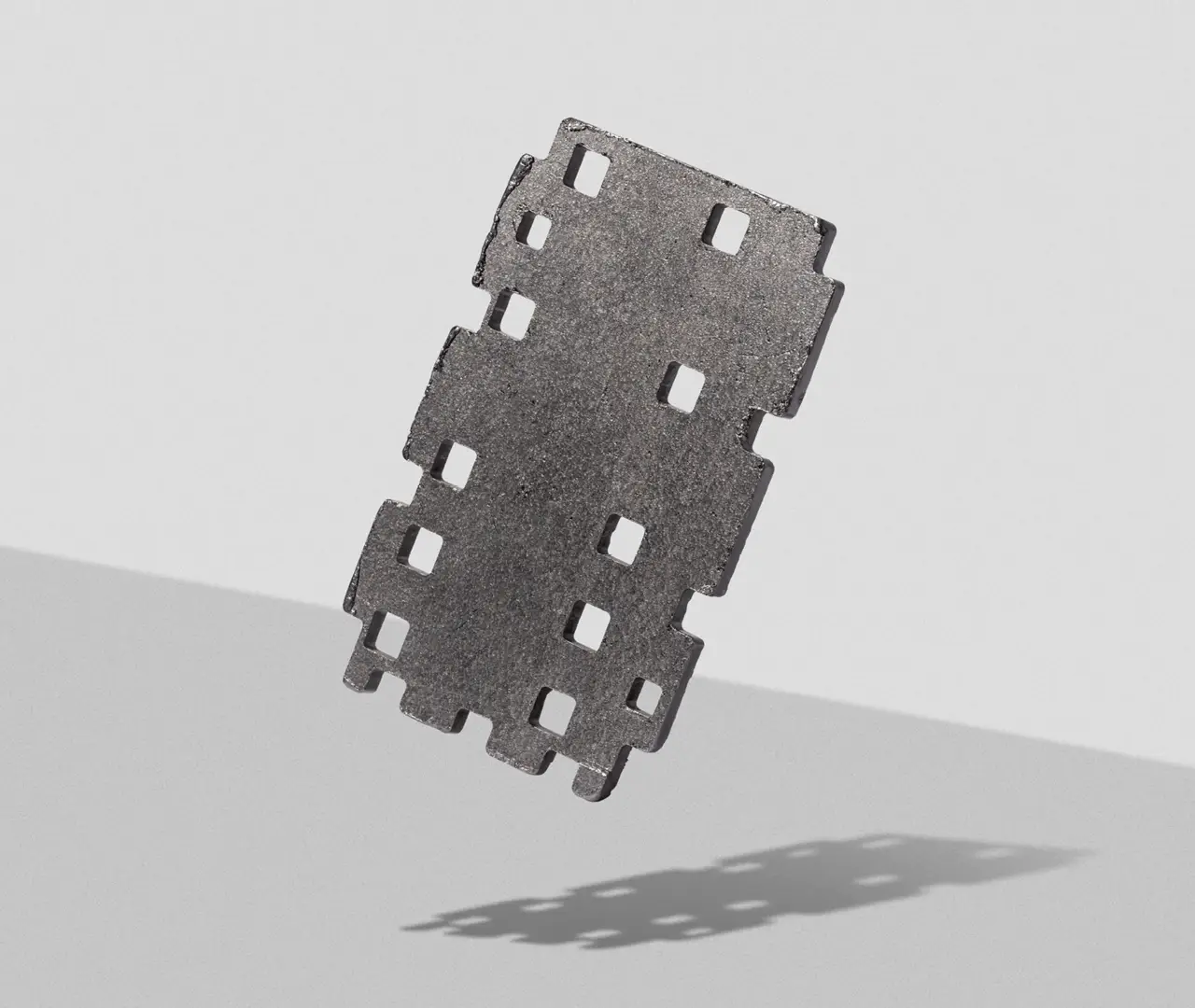

Pyrolytic Graphite Coatings are popular as a coating for sealing machined graphite hardware, pyrolytic graphite (PG) forms an impermeable protective layer and possesses mechanical, thermal and electrical properties beyond what is achievable with conventional graphite. An ultra-pure product, PG is near theoretical density and is highly anisotropic (300 W/m-K in ab direction, 3.5 W/m-K in c). PG is chemically inert and is stable at extreme temperatures (up to 3000°C).ls (Al, Ag, Cu, Ga, Ge, Sn, etc.), acids and hot ammonia environments.
