Carbide coatings

Carbide
Coatings

Extreme thermal stability and chemical resistance
Carbide Coatings

Momentive Technologies’ unique carbide coatings provide exceptional protection for graphite in harsh semiconductor and compound semiconductor material processing. The results are extending graphite component life, maintaining reaction stoichiometry and suppressing impurity migration into epitaxy and crystal growth applications to provide improved yield and quality benefits.



Our Tantalum Carbide (TaC) and Niobium Carbide (NbC) coatings guard key furnace and reactor components at elevated temperatures (up to 2200°C) against hot ammonia, hydrogen and silicon vapors and molten metals. Momentive Technologies can provide our coating either as a toll-coating or on a full-service basis thanks to our extensive graphite machining and measurement capabilities to handle your customized requirements, and our team of expert engineers is always here to help you design the right solutions for you and your specific applications.

Key Features

Temperature stability over 2000°C enables ultra-high temperature operation

Resistance to H2, NH3, SiH4, and Si provides protection in harsh chemical environments

Resistance to thermal shock accelerates operation cycles

Strong adhesion to graphite ensures long life without coating delamination

Ultra-high purity eliminates unwanted impurities or contaminations

Conformal coating coverage achieves tight dimension tolerance

Potential Applications

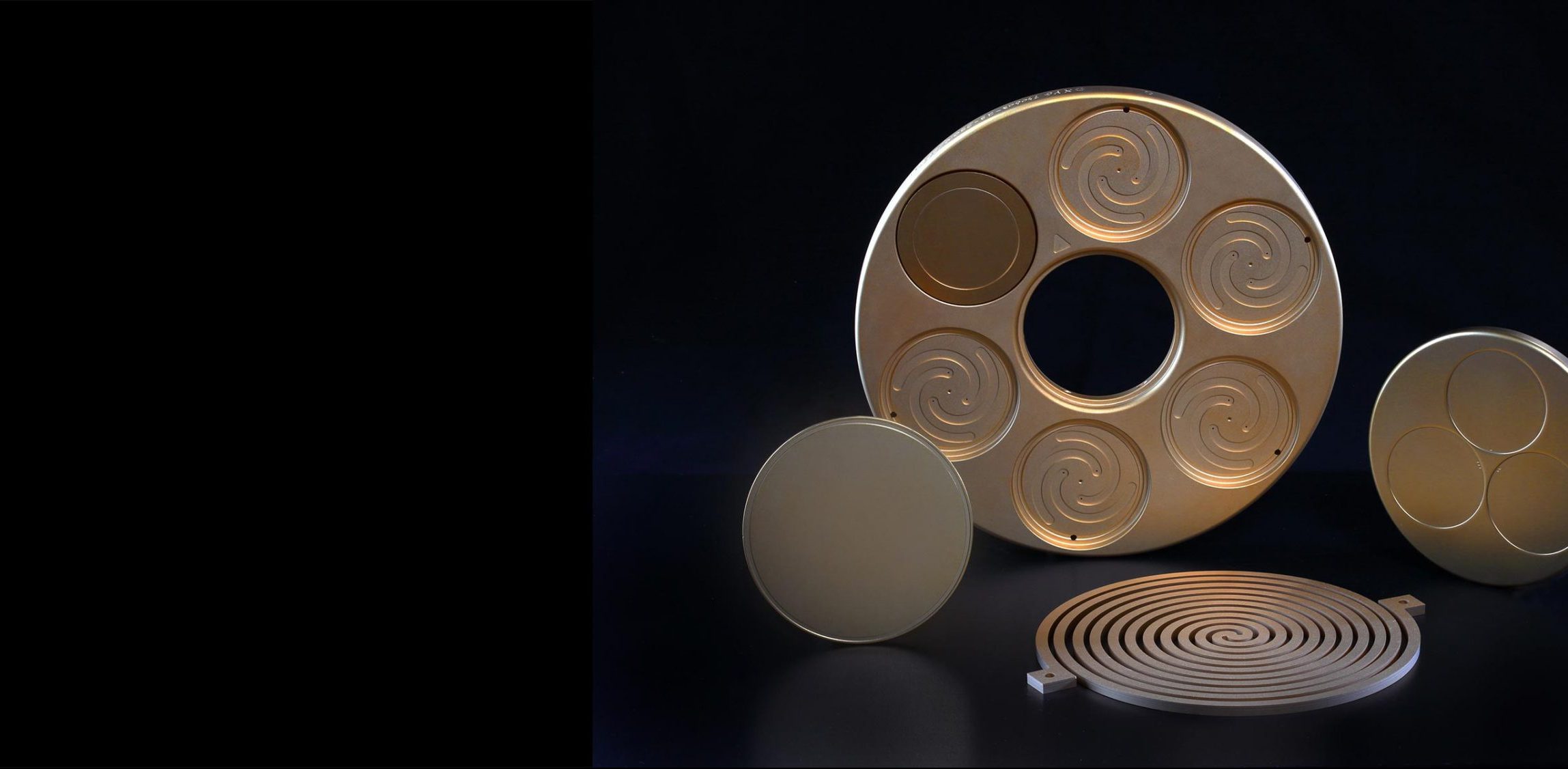

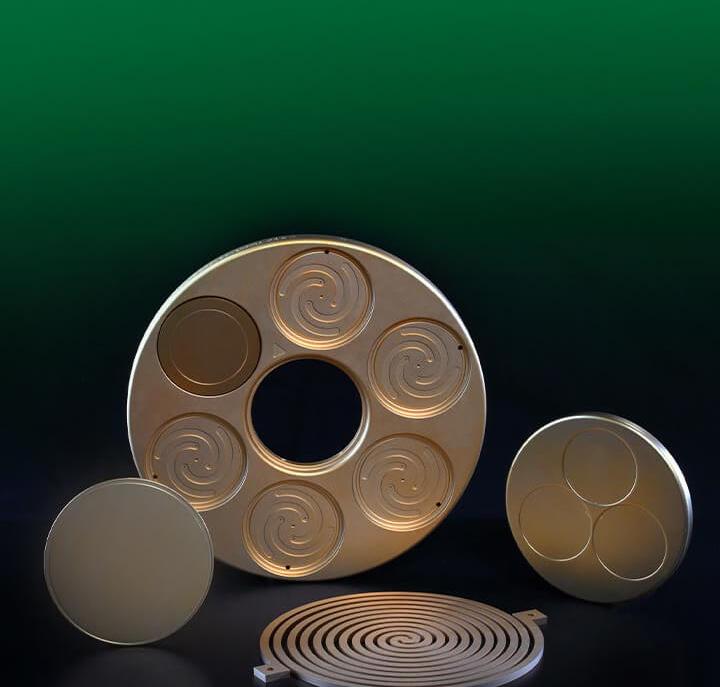

GaN and SiC Epitaxial CVD reactor components, including wafer carriers, satellite disks, showerheads, ceilings and susceptors

SiC, GaN and AlN crystal growth components, including crucibles, seed holders, guide rings and filters

Industrial components, including resistive heating elements, injection nozzles, masking rings, and brazing fixtures

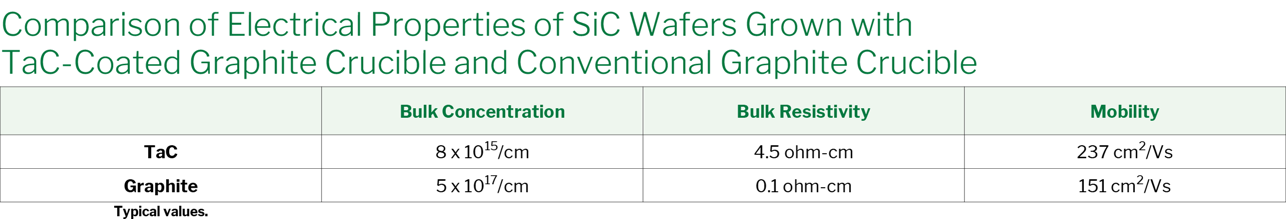

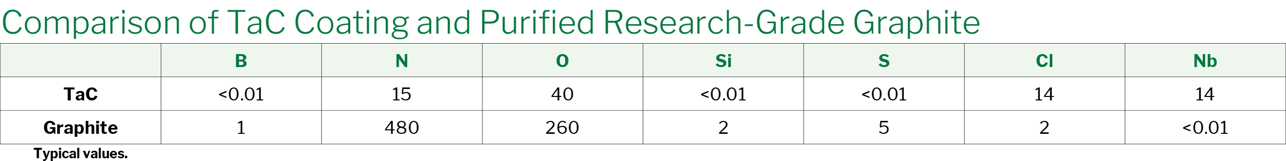

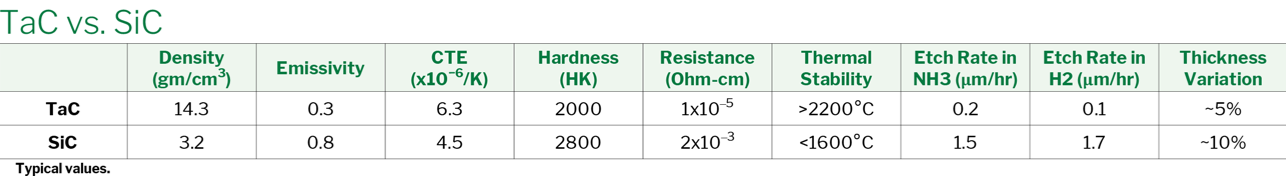

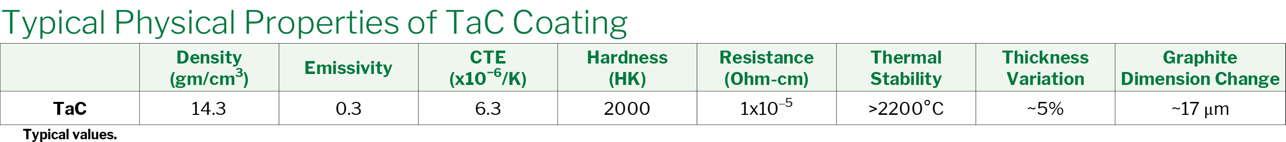

The information provided in these charts is for informational purposes only. It is not a product or material recommendation and it is shared with you on the express condition that you will use your own expertise and professional judgment in applying any information to a specific use case or need. This is general information only, the validity of which may be affected by individual factors that are unknown to Momentive Technologies. It is the responsibility of those using this information to ensure appropriate interpretation and application is undertaken with regards to any specific situation.
