Improved thermal uniformity at higher temperatures
Heaters and Thermal Solutions

With more than four decades of designing heater solutions for semiconductors and compound semiconductors, Momentive Technologies is poised to help differentiate your crystal and wafer processing equipment. Based upon this experience, Momentive Technologies has engineered a number of novel heater solutions focused upon high temperature applications (above 500°C), improved thermal uniformity (<2°C) and overall cost of ownership.



Momentive Technologies manufactures pBN/PG heaters, TaC heaters, heater modules and thermal levelers to your exact thermal, power and size specifications. We have a full-service analytical lab and team of expert engineers to help you design the right solutions for you and your specific applications.

Key Features

Thermal shock resistant and thermally stable materials allow continuous operation up to 1500°C without compromising the life of the heater

Fast cycle times and ramp rates more than 100°C/sec create high throughput and power saving

Tunability in multiple zones, overall design versatility and 3D features result in superior wafer thermal uniformity

Superior electrical resistivity and the ability to tune resistivity allow integration of high-temperature electrostatic chucking

Potential Applications

Semiconductor processing equipment such as ion implantation, sputtering, evaporation, MBE, ALD, MOCVD, PECVD and RTP

Metal evaporation and molten metal processing equipment such as OLED electrodes and CIGS solar cell processing equipment

High-temperature glass forming

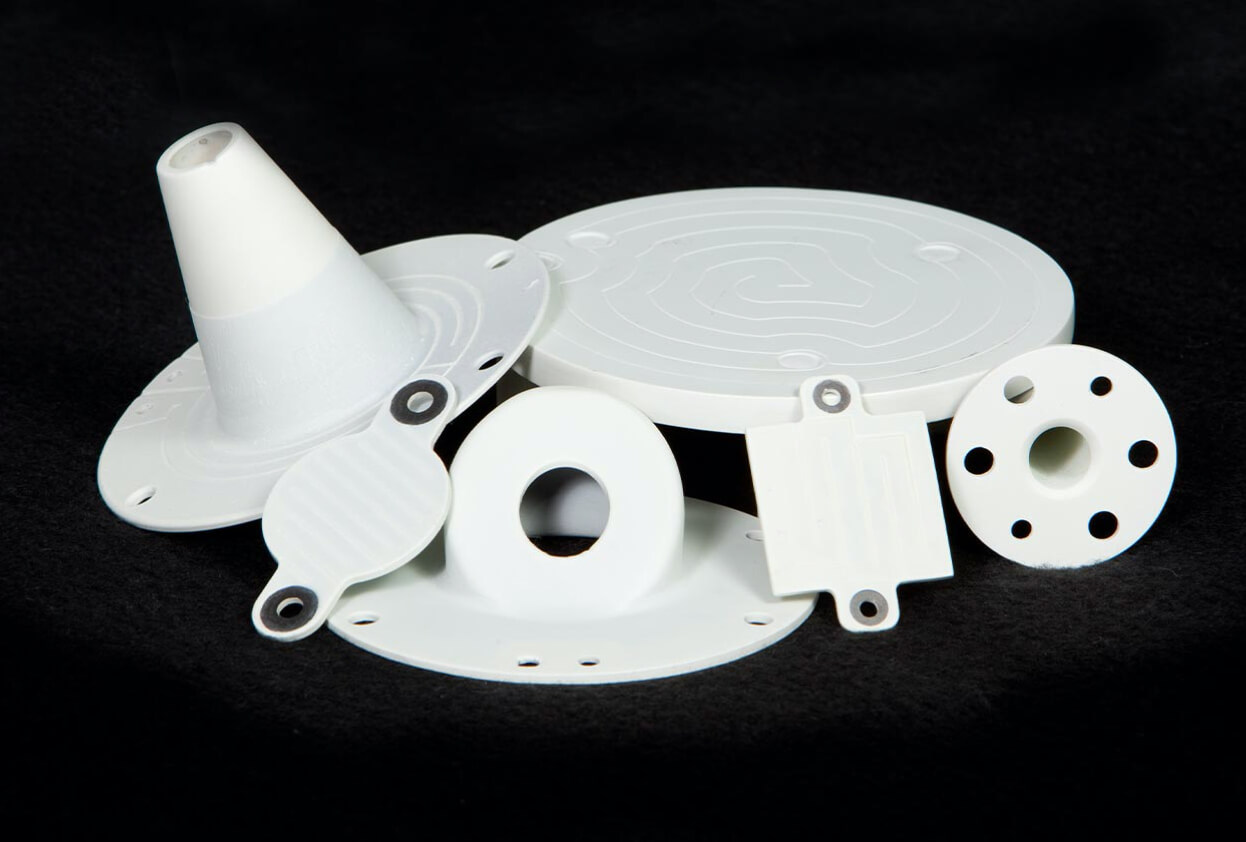

pBN Heaters and Chucks (ESC)

pBN Heaters and Chucks (ESC)



pBN/PG heaters operate at 1700°C and higher with excellent thermal uniformity (2°C on wafer) in an ultra-high vacuum. As nonbrittle refractory materials, they owe their exceptional purity to a high-temperature chemical vapor deposition production method which makes them chemically inert to most corrosive gases and liquids and unaffected by most molten metals. Momentive Technologies can even custom-design heater chucks (ESC) for your high-temperature (up to 1000°C) wafer handling needs.

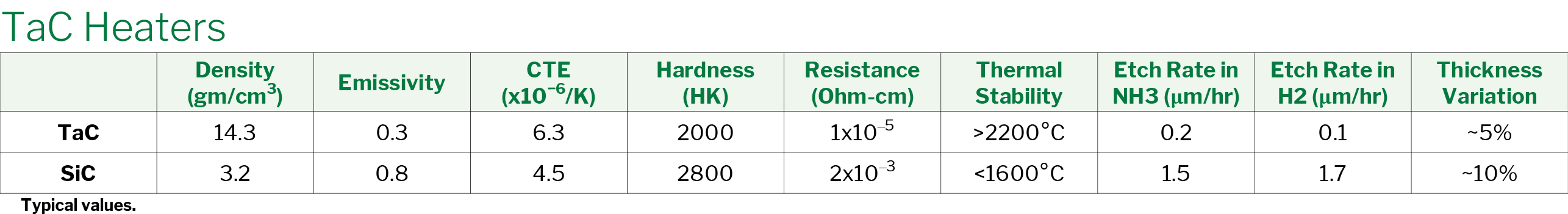

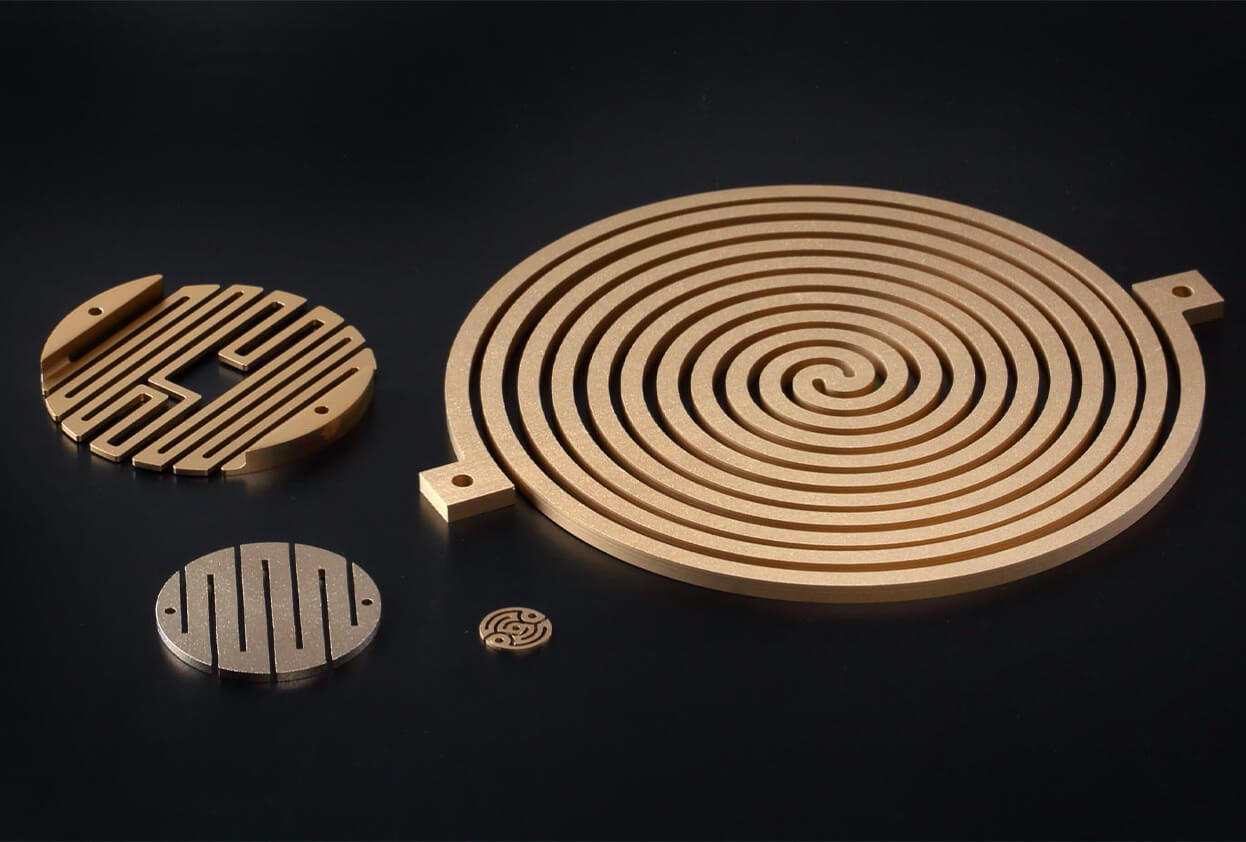

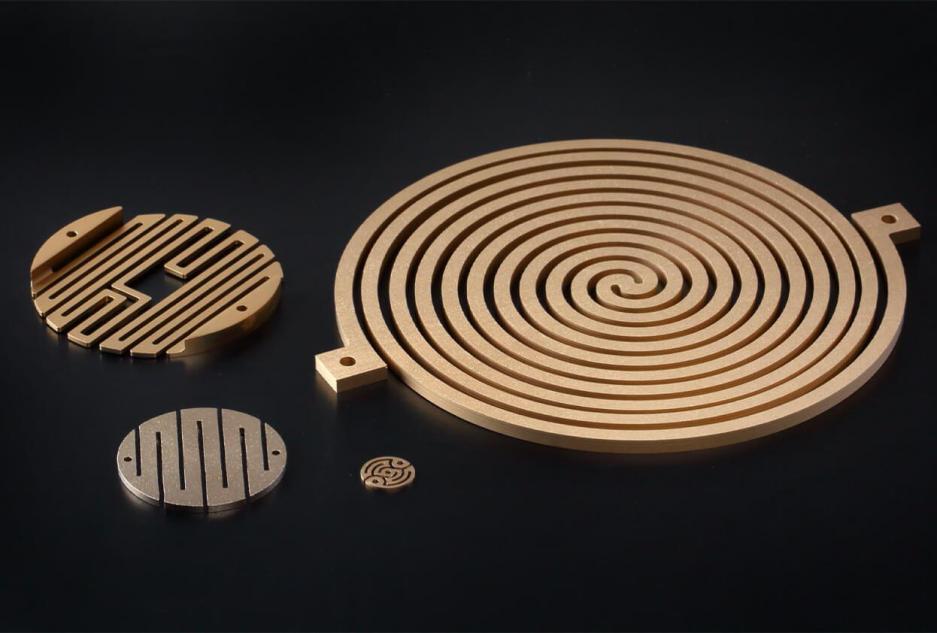

TaC Heaters

TaC Heaters



TaC coated graphite heaters provide a more robust heating solution that enhances the life of heaters in harsh environments, reduces equipment maintenance cycles/costs and increases production yield. TaC heaters are stable above 2200°C and offer resistance to H2, NH3, SiH4 and CH4.

The information provided in these charts is for informational purposes only. It is not a product or material recommendation and it is shared with you on the express condition that you will use your own expertise and professional judgment in applying any information to a specific use case or need. This is general information only, the validity of which may be affected by individual factors that are unknown to Momentive Technologies. It is the responsibility of those using this information to ensure appropriate interpretation and application is undertaken with regards to any specific situation.


ceramics heaters thermal solutions product levelers

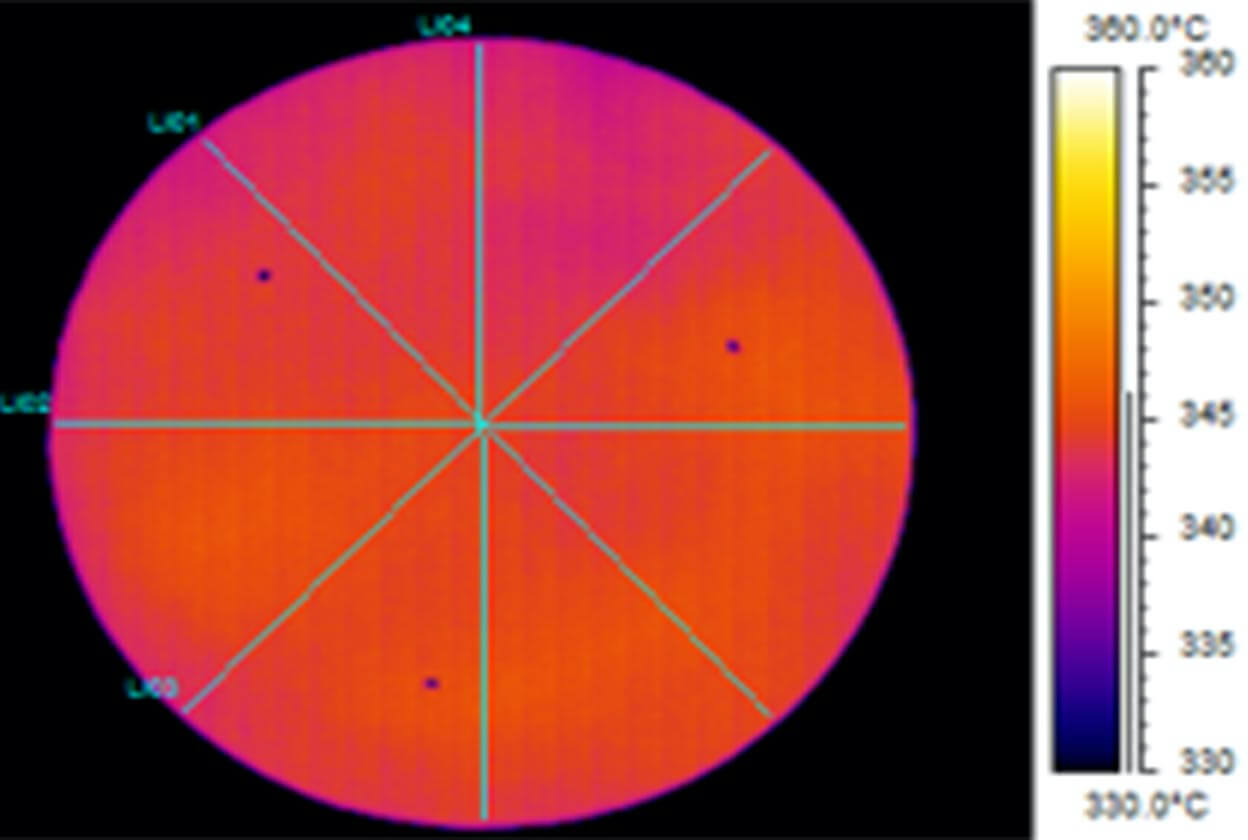

Thermal Levelers



Unique TPG (thermal pyrolytic graphite, 1500W/mK)-based levelers significantly improve the uniformity of new module/pedestal solutions or provide a drop-in uniformity upgrade to existing pedestals. Decades of supplying thermal management heat sinks to the aerospace and military markets combined with our unique understanding of the semiconductor heater market allow our unique thermal levelers to deliver three times better uniformity. And it all can work in coordination with existing heating solutions to improve yields and increase throughput.

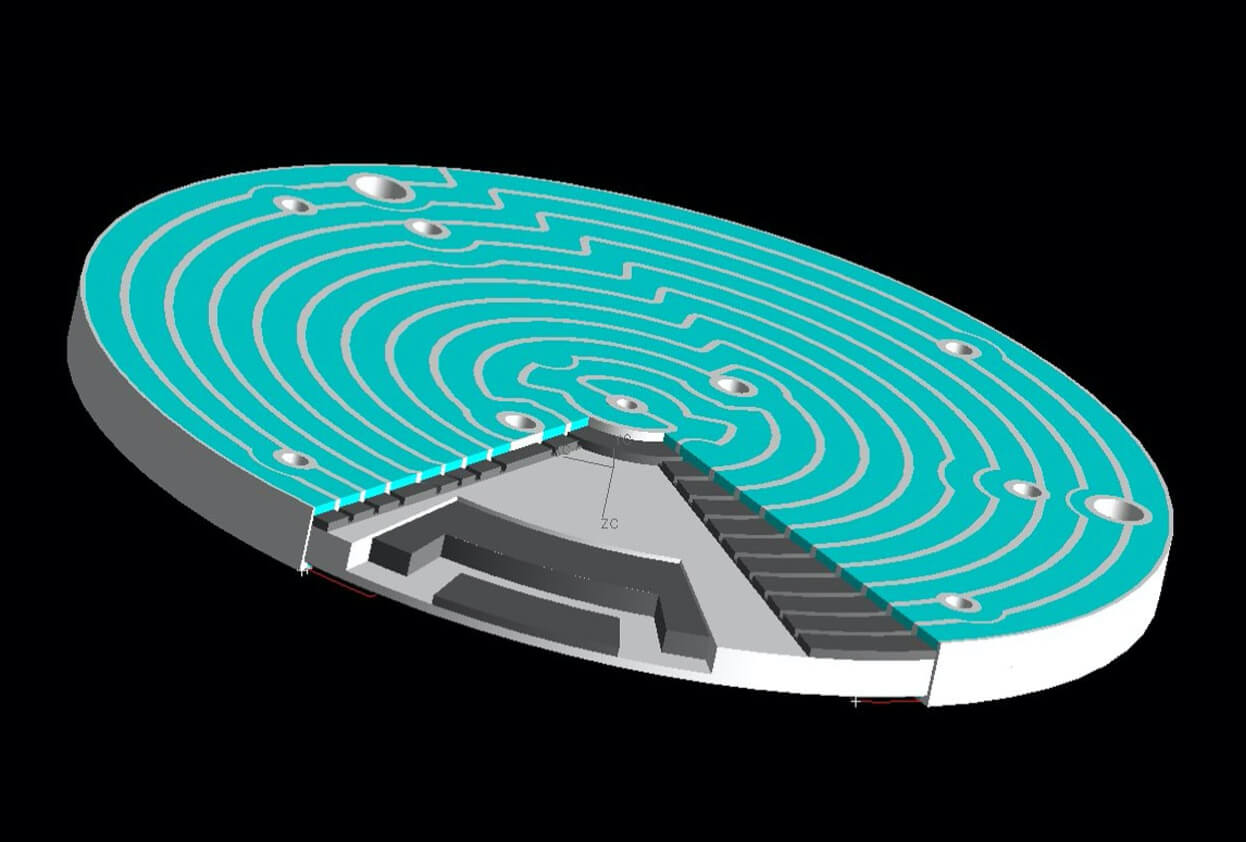

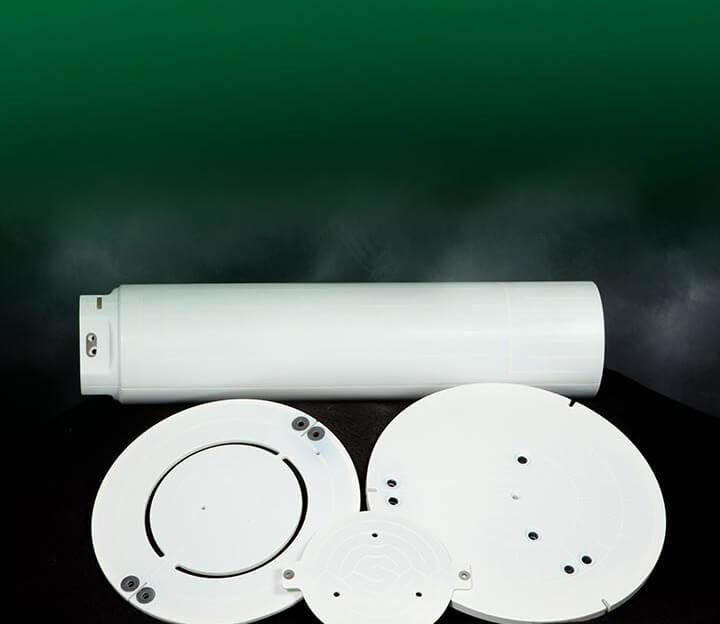

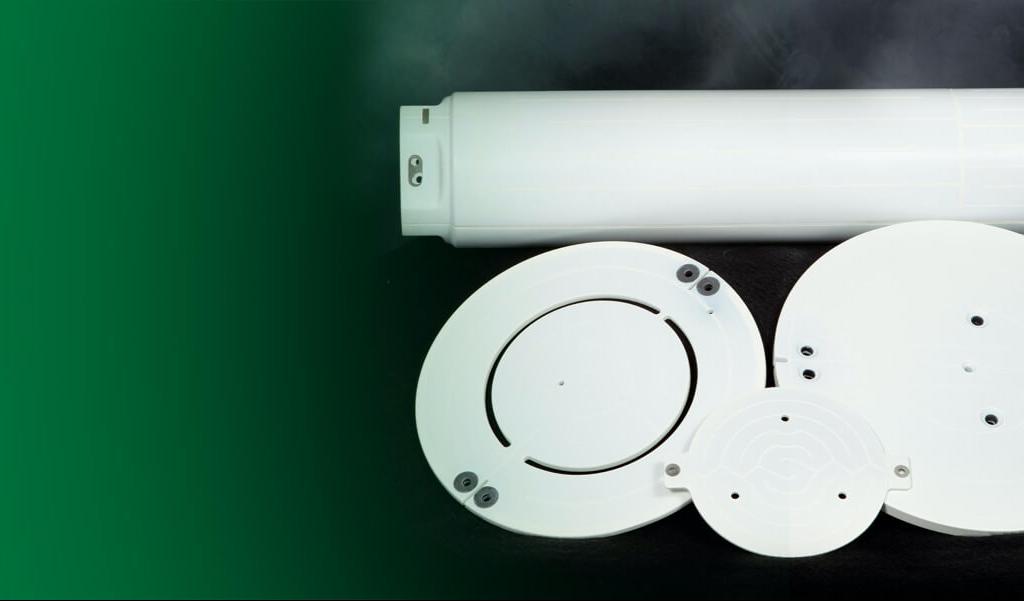

Modules

Modules

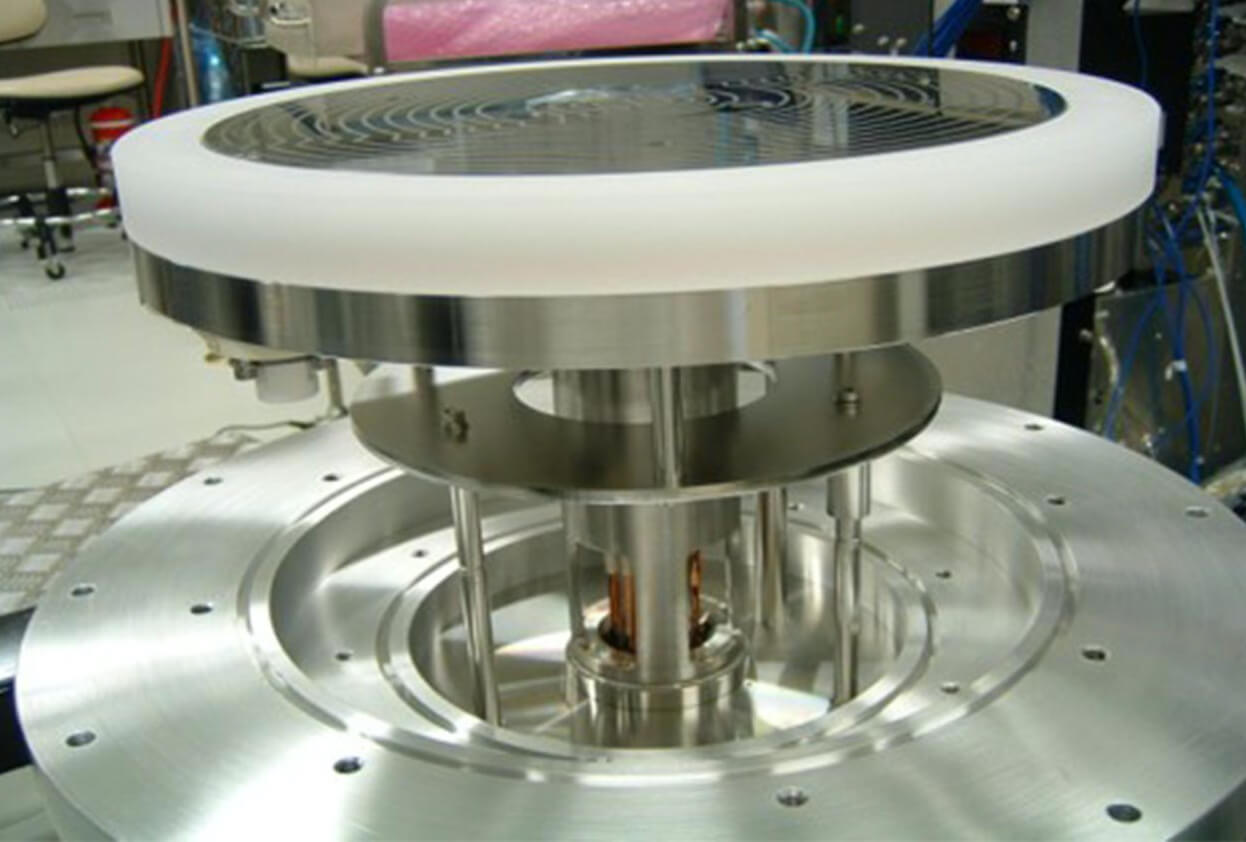

Customized plug-and-play integrated modules containing pBN heaters and/or chucks offer superior thermal uniformity, higher throughput, longer life and easier maintenance.
